Cable Ladder

Cable ladder is one of the most flexible solutions for the routing of cables for medium and heavy-duty cable installations in building, production factory and many other outdoor plants for electrical power distribution, control, and communication purpose. The ladder type tray has the cables supported by a traverse bar, similarly to the rungs combined with side railing beam, at regular intervals on the standard order of 300mm or other special requirements like 200mm or 250mm.

Steel Cable Ladder

Material:

  1. Hot roll mild steel to JIS G 3131 SPHC, JIS G 3101 SS400
  2. Cold roll mild steel to JIS G 3141 SPCC
  3. Corten steel EN 10025 S 355 JOW
  4. Pre-Galvanized Steel BS 2989
  5. Electro Galvanized to BS 1449 Pt.1: 1983
  6. Stainless Steel AISI grade 304, 316 & 316L
  7. Aluminium

Finishing:

  1. Hot Dipped Galvanized to BS EN ISO 1461 or ASTM A123
  2. Epoxy Powder Coated to ASTM D 1654, BS 6920
  3. Polyester Powder Coated to ASTM D 1654, BS 6920

Standard:

  1. NEMA 10A, 12B and 20C
  2. MS IEC 61537: 2007

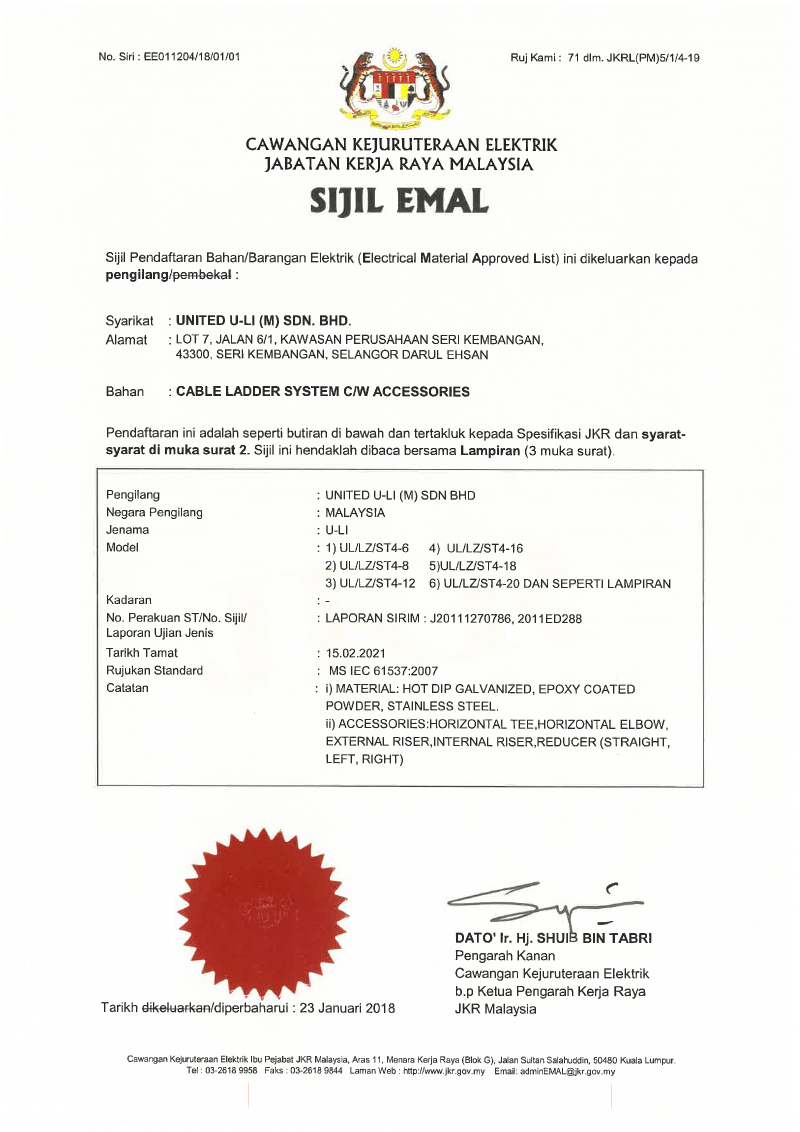

Certificate:
